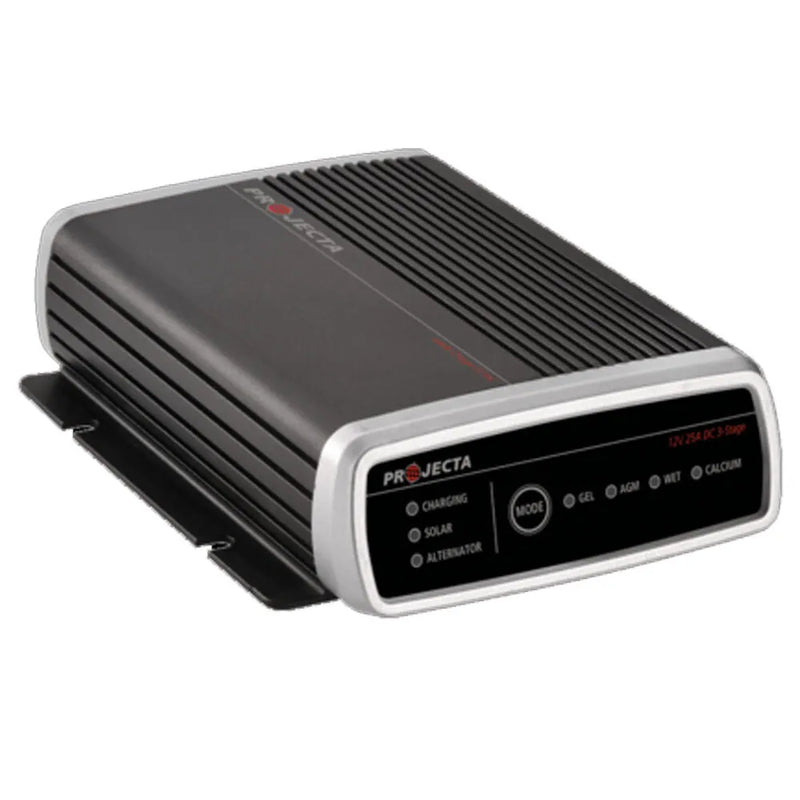

Projecta DC/DC 25ampCharger IDC25

A truly sophisticated dual battery management system ideal for 4WD and camper trailer applications. Provides an advanced 3 stage charge simultaneously from both solar and alternator inputs.

Allows you to charge your 12V second/auxiliary deep cycle battery on the go, simultaneously from solar and alternator (9-32V) inputs. IDC25 is shock, vibration and dust proof.

Features:

Engine bay installation
Sealed to IP67, the IDC is dust, splash and shock proof and can safely operate in extreme temperatures up to 80°C

Dual charging modes
Engineered to work with both smart and conventional alternators

Multi-chemistry
Set the charging profile to suit battery chemistry type: Wet, Calcium AGM or Gel

Dual input operation
Simultaneous dual battery charging from both solar and alternator inputs

Total safeguard protection
Over temperature, reverse connection, over/under and spark free protection

Specifications:

Size 149 X 122 X 42mm
Operating Temperature -10°C to +80°C
Battery Capacity 75–300Ah
Alternator Input Volatge 9–32Vdc
Solar Input 23Vdc, 385W
Output Current
Input 9–11Vdc 20A

Input 11V–32dc 25A

Charge Control
Gel: 14.1V

AGM: 14.4V

WET: 14.7V

Calcium: 15.4V

Smart Alternator
12V Vehicle:

Turn On: 12.2–20V

Turn Off: <11.9V

24V Vehicle:

Turn On: ≥24.4–32V

Turn Off: <24V

VSR Alternator
12V Vehicle:

Turn On: ≥13.4–20V

Turn Off: <12.8V

24V Vehicle:

Turn On: ≥26.8–32V

Turn Off: <25.6V
